stainless steel sculpture Large stainless steel sculpture projects rarely become expensive because of one single mistake.
More often, the problem starts much earlier.
The size may still be changing when structural engineering begins. The finish may not be confirmed before fabrication. The sculpture may look perfect in a rendering but be difficult to fit into a shipping container. The foundation may not be ready when the sculpture arrives.
Each issue seems small on its own.
Together, they can add weeks to the schedule and significant cost to the project.
At YouFine, we have worked on custom stainless steel sculptures for parks, plazas, hotels, commercial developments, private properties and large public projects. One lesson we have learned repeatedly is simple:
The best way to control the budget and timeline is to solve the important questions before fabrication begins.
This guide explains where the cost of a large stainless steel sculpture comes from, what usually causes delays, and what project owners can prepare in advance to make the whole process more predictable.
What Determines the Cost of a Large Stainless Steel Sculpture?
There is no useful single price per meter for every large sculpture.
Two sculptures that are both 6 meters tall can have very different budgets.
The final cost depends on several connected factors.
Sculpture Size and Overall Volume
Size is the most obvious factor, but height alone does not tell the whole story.
A tall, narrow sculpture may use much less stainless steel than a wide, enclosed form of the same height.
When we estimate a large project, we look at:
- total height
- overall width and depth
- surface area
- shape complexity
- internal structure
- required plate thickness
- transportation dimensions
As sculptures become larger, cost does not always increase in a simple straight line.
A size increase may also require a stronger frame, thicker material, larger lifting equipment and a different shipping plan.
That is why changing a sculpture from 5 meters to 8 meters can affect much more than material quantity.
304 or 316 Stainless Steel?
Material selection is another important budget decision.
For most inland outdoor projects, we commonly use 304 stainless steel.
For coastal locations, swimming pool areas, marine environments or places with higher salt exposure, 316 stainless steel may be the better choice.
316 usually costs more, but choosing material only by the lowest initial price is not always wise.
The project environment matters.
If a sculpture is being installed close to the sea, material selection should be discussed at the beginning rather than treated as a finishing decision later.
We normally ask about the installation location before confirming the material specification.
Surface Finish Can Change the Budget More Than Clients Expect
The finish affects both appearance and production work.
Common options include:
- mirror polished stainless steel
- brushed or satin stainless steel
- painted finish
- electroplated finish
- powder-coated finish
- mixed surface treatments
A high-quality mirror finish is especially demanding.
Welding seams must be carefully treated, surfaces need repeated grinding and polishing, and large curved areas need to remain visually smooth.
For highly reflective sculptures, small surface problems become very easy to see.
This is why a mirror-polished sculpture usually requires more finishing work than a simple brushed surface.
The most economical finish is not always the best one.
We usually recommend choosing the finish based on the design, location and desired visual effect first, then optimizing the production method around that decision.
The 6 Decisions We Prefer to Confirm Before Production
For large projects, we try to freeze six major decisions before full fabrication begins.
They are:
- Final sculpture size
- Stainless steel grade
- Surface finish
- Internal structural system
- Segmentation and transportation plan
- Foundation and installation method
These decisions influence each other.
For example, the final size affects the structure.
The structure affects weight.
Weight affects the foundation and crane requirements.
The shipping plan may affect how the sculpture is divided into sections.
The joints between those sections may then affect how we plan the final surface finishing.
This is why large sculpture fabrication is not simply a sequence of independent steps.
It is one connected system.
What Usually Pushes a Large Sculpture Over Budget?
In our experience, budget problems are often caused by late changes rather than the original design itself.
1. Increasing the Size After Engineering Has Started
Changing a sculpture from 4 meters to 5 meters may sound like a small adjustment.
But it can affect:
- structural steel
- stainless steel surface area
- plate thickness
- weight
- wind load
- foundation
- transport
- lifting equipment
Whenever possible, we recommend confirming the final dimensions before structural detailing begins.
2. Changing the Finish Too Late
Mirror polishing, brushing and painting require different surface preparation.
If a client changes from a painted finish to a mirror-polished finish after major fabrication has already been completed, some areas may need additional grinding, welding treatment or even partial rework.
It is much easier to plan the correct finish from the beginning.
3. Designing Without Considering Shipping
A sculpture may look wonderful as one continuous form.
But if it cannot fit into a standard container or safely travel by road, transportation can suddenly become much more complicated.
For large sculptures, we often consider shipping dimensions during engineering.
A good segmentation plan can reduce transport difficulty while keeping visible joints to a minimum.
This is one area where design and logistics need to work together.
4. Waiting Too Long to Plan the Foundation
The sculpture and foundation should not be treated as two unrelated projects.
Before installation, we may need to consider:
- sculpture weight
- center of gravity
- wind load
- base plate dimensions
- anchor bolts
- reinforcing cage
- concrete foundation
- site conditions
If foundation information is only considered after the sculpture has already been produced, changes become much harder.
For large outdoor projects, we prefer to discuss the foundation during the engineering stage.
How Long Does a Large Stainless Steel Sculpture Take?
Every project is different, but a large custom sculpture usually passes through several stages.
A typical schedule may look like this:
Concept and Design Confirmation
Approximately 5–10 days
This may include reference drawings, dimensions, proportions and design revisions.
Structural Engineering
Approximately 7–14 days
For larger work, this may include internal structure planning, segmentation, connection details and installation considerations.
Fabrication
Approximately 40–80 days
This includes cutting, forming, welding, grinding, polishing and surface finishing.
Complex forms or very large landmark sculptures may require longer.
Trial Assembly and Inspection
Approximately 3–7 days
For sculptures produced in sections, trial assembly helps us confirm that the pieces fit correctly before packing.
International Shipping
Approximately 3–6 weeks
Shipping time depends on destination, port, transport method and customs conditions.
On-Site Installation
Approximately 10–25 days for large projects
Actual installation time depends strongly on sculpture size, segmentation, site access, foundation readiness and lifting conditions.
These numbers are useful for planning, but they are not a promise that every project follows exactly the same schedule.
The earlier we understand the project conditions, the more accurately we can estimate the timeline.
What Usually Causes Delays?
Most project delays can be traced back to a few recurring issues.
Repeated Design Revisions
Design changes are normal during the early stage.
The problem starts when major changes continue after engineering or fabrication has already begun.
We therefore encourage clients to spend enough time confirming the design before production.
A few extra days at the design stage can sometimes save weeks later.
Slow Structural Approval
For public, commercial or landmark projects, several parties may need to review the sculpture:
- artist
- client
- architect
- landscape designer
- structural engineer
- contractor
- project manager
If structural drawings remain unconfirmed, fabrication may have to wait.
We recommend identifying the approval chain early.
Late Material or Finish Confirmation
Material and surface treatment should not stay open indefinitely.
If the finish affects fabrication details, waiting until the last moment can disrupt the schedule.
Foundation Not Ready
A finished sculpture arriving at a site with no completed foundation is an expensive piece of cargo waiting for a home.
For larger projects, foundation construction can often begin while sculpture fabrication is underway, provided that structural information has already been confirmed.
This parallel planning can save significant time.
Crane and Installation Equipment Not Reserved
Large sculptures may require:
- mobile crane
- forklift
- lifting straps
- scaffolding
- welding equipment
- electricians
- local installation workers
These resources should be planned before the sculpture reaches the site.
A Real Lesson From Large Project Coordination
On large public and commercial projects, fabrication is sometimes not the longest part of the job.
Pre-production coordination can take much longer.
We have worked on projects where the design needed to move through several rounds of discussion between artistic expectations, structural requirements, material selection, installation safety and budget.
This is normal for large sculptures.
It does not necessarily mean the project is going badly.
In many cases, careful coordination before production prevents much more expensive changes later.
For us, one of the most important milestones is not simply:
“Production has started.”
It is:
“The major technical questions have been resolved.”
Once size, structure, finish, segmentation, foundation and installation method are clear, the rest of the project becomes much easier to control.

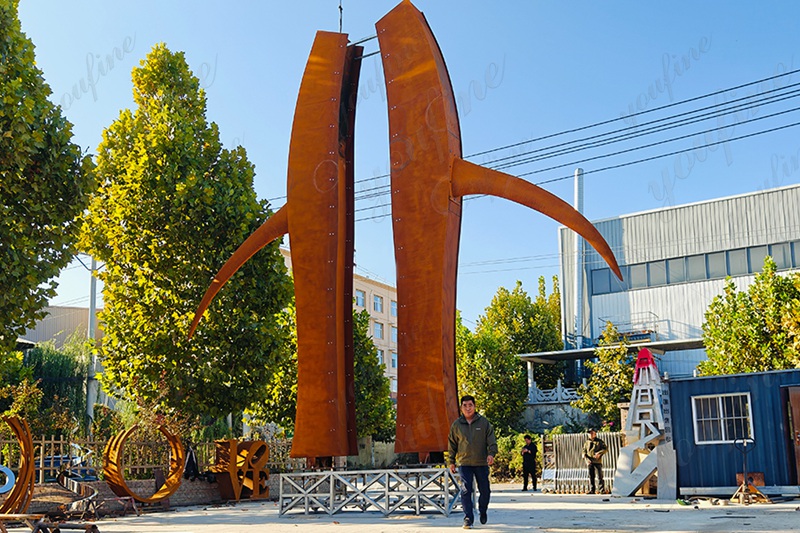

Why Trial Assembly Matters
For large sculptures produced in several sections, we prefer to trial assemble important parts before shipping whenever practical.
This allows us to check:
- overall form
- connection positions
- bolt holes
- structural interfaces
- visible joint alignment
- installation sequence
Finding a problem in the factory is much easier than discovering it during installation thousands of kilometers away.
This is also why we provide production photos and videos throughout the project.
Clients should not have to wait until the container arrives to see whether the project was made correctly.
Plan Installation Before Fabrication Is Finished
For large sculpture projects, installation should already be part of the discussion during production.
We normally want to understand:
- Is the installation area accessible by crane?
- How close can a truck get?
- Is the foundation already completed?
- Is there enough working space around the sculpture?
- Will sections be bolted or welded on site?
- Is electricity required for lighting or movement?
- Are there local height or lifting restrictions?
These questions may sound practical rather than artistic.
But they can decide whether installation takes two days or two weeks.
What Should You Prepare Before Requesting a Project Proposal?
You do not need to have every engineering detail ready.
To start discussing a large stainless steel sculpture, the most useful information usually includes:
- design image, sketch or concept
- approximate dimensions
- installation location
- indoor or outdoor use
- preferred finish
- project deadline
- site photos
- available drawings
- delivery country
- any known installation restrictions
If you already have CAD drawings or architectural plans, even better.
If you only have a hand sketch and a photo of the site, that is still enough to begin.
We can develop the technical solution step by step.
How YouFine Supports Large Stainless Steel Sculpture Projects
At YouFine, we approach large sculpture as a complete project rather than only a fabrication order.
Our work can include:
- design development
- 3D/CAD coordination
- material selection
- structural planning
- stainless steel forming
- TIG/MIG welding
- grinding and polishing
- mirror or brushed finishing
- trial assembly
- reinforced export packing
- foundation reference drawings
- installation guidance
- on-site installation support when required
For outdoor projects, we can also discuss environment-specific choices such as 304 or 316 stainless steel, corrosion conditions, wind exposure and foundation requirements.
Throughout production, we can provide photos and videos so clients can follow the project rather than waiting until shipment.
Should You Choose the Lowest Quote?
For large sculpture projects, I would be careful about comparing suppliers only by the first quotation.
Two prices may look similar while including very different levels of work.
Before comparing quotations, check whether they include the same:
- stainless steel grade
- plate thickness
- internal structure
- surface finish
- engineering work
- packing method
- trial assembly
- shipping scope
- installation support
A lower quotation is not truly lower if important parts of the project have simply been left out.
For large public or commercial sculpture, predictability is often more valuable than the lowest starting number.
Final Advice: Solve Expensive Problems While They Are Still Drawings
The cheapest place to change a large sculpture is usually on the drawing.
Changing the size on a CAD file is easy.
Changing it after the steel frame has been welded is not.
Moving a connection point in a drawing is easy.
Changing it while a crane is waiting on site is not.
That is why we spend time discussing engineering, transportation and installation before production begins.
Large stainless steel sculptures may look simple once they are standing in a plaza or park, but successful projects depend on many decisions made long before installation day.
If you are planning a large sculpture, send us your concept, approximate dimensions and project location.
Even if the design is still at an early stage, we can help review the material, structure, finish, segmentation, production schedule and installation requirements before you commit to the final plan.
Sometimes the best way to save money on a large sculpture is not to make it cheaper.
It is to avoid having to make it twice.
Frequently Asked Questions
How much does a large stainless steel sculpture cost?
The cost depends on size, shape, stainless steel grade, plate thickness, internal structure, surface finish, transportation and installation requirements. A detailed quotation normally requires at least approximate dimensions and a design reference.
Is 304 stainless steel suitable for outdoor sculpture?
Yes, 304 stainless steel is commonly used for many inland outdoor projects. For coastal, marine, poolside or high-salt environments, 316 stainless steel may be more suitable.
How long does a large stainless steel sculpture take to manufacture?
Many large sculptures require approximately 40–80 days for fabrication after the design and engineering are confirmed. Very large or complex landmark projects may take longer.
Can a large sculpture be shipped in sections?
Yes. Large sculptures are often divided into carefully planned sections for transportation. The sections can then be bolted or welded together during installation.
Does a large outdoor sculpture need a concrete foundation?
In many cases, yes. The final foundation design depends on sculpture weight, center of gravity, wind load, installation method and local site conditions.
Can you provide installation drawings?
Yes. For custom projects, we can provide foundation and installation reference drawings according to the sculpture structure and site requirements.
Can lighting or water features be added?
Yes. Lighting, water systems and rotating systems can be integrated into suitable sculpture designs. These should ideally be planned during the design stage because they affect internal structure, wiring, access panels and maintenance.
What information should I send for a quotation?
A design image or sketch, approximate dimensions, project location, preferred finish, delivery country and expected deadline are usually enough for us to begin reviewing the project.
Why You Need a Professional Manufacturer for Oversized Stainless Steel Sculpture Projects
